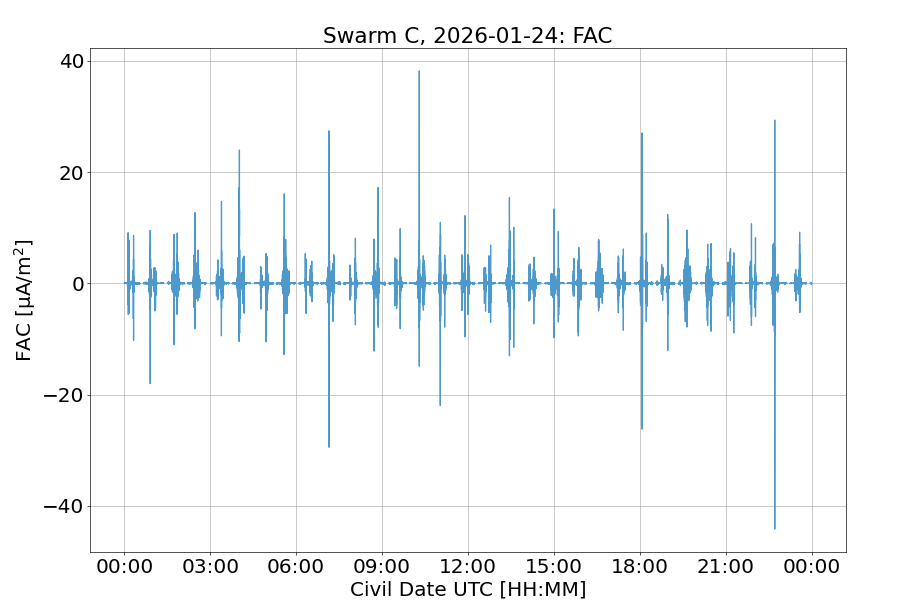

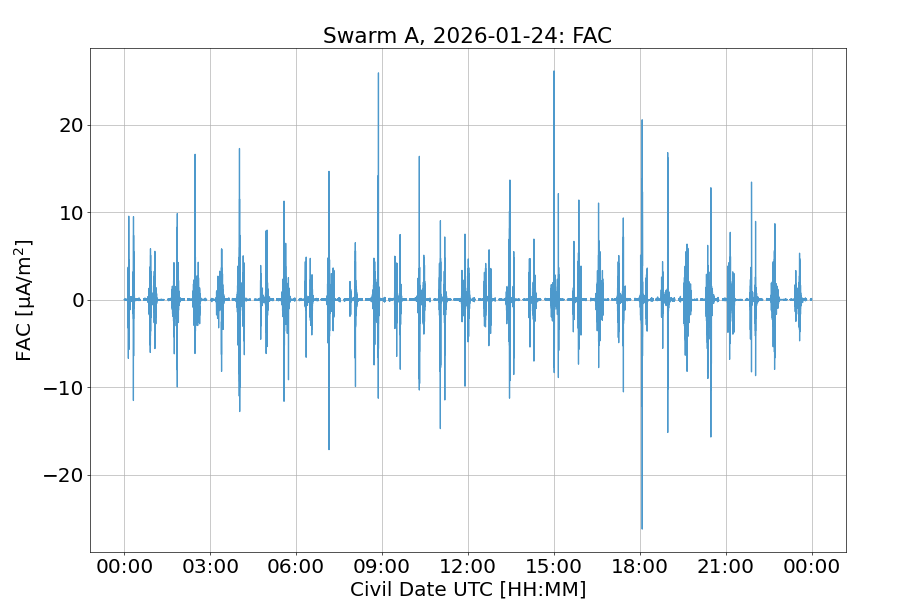

Swarm Field-Aligned Current (FAC) - Product description and access

Swarm satellites provide the Field-Aligned Currents (FACs) which play an important role in magnetosphere-ionosphere interactions. They are the main mechanism of energy coupling from solar wind into high-latitude upper atmosphere. As FAC acts as connector between the magnetosphere and ionosphere at high latitudes, exact information an FACs can help to give constraints on many physical parameters: e.g., ionospheric conductivity.

Swarm FAC is provided as Level 2 (L2) data product with a 1Hz cadence by ESA’s Earth’s Observation program. The data are provided in daily files in Common Data Format (CDF). The product names are FACxTMS_2F, with x = A, B, C for the 3 satellites respectively.

More information on the Swarm L2 FAC product, including definitions, descriptions, metadata, and data access, is available at: https://swarmhandbook.earth.esa.int/catalogue/SW_FACxTMS_2F.
